P77

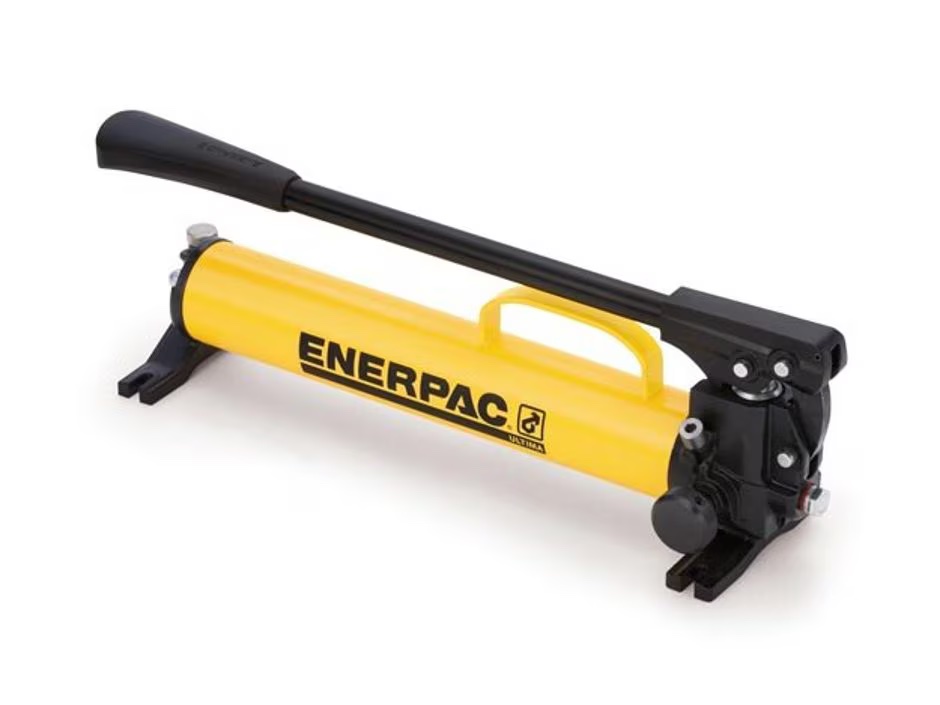

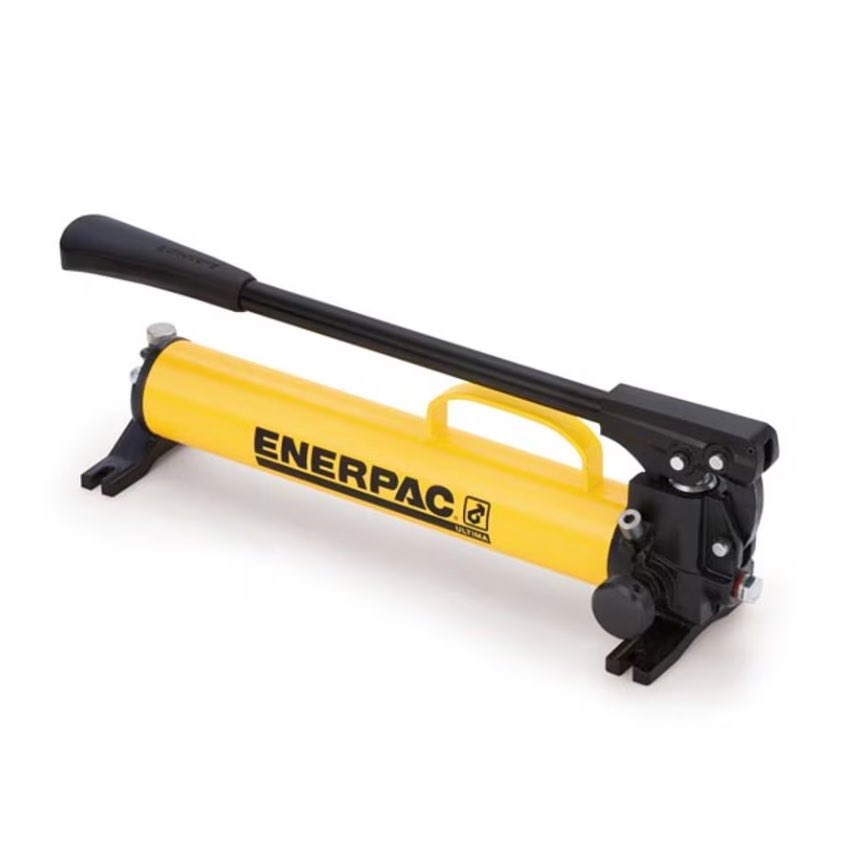

ENERPAC Hydraulic pump
(Ultima Steel Hand Pump, Two Speed, Single Acting, 0.67 Litres Usable Oil)
Made in: China
Liên Hệ Báo Giá Dự Án & Tư Vấn Kỹ Thuật
Sản phẩm thuộc nhóm thiết bị công nghiệp tiêu chuẩn cao. Vui lòng liên hệ bộ phận kỹ thuật Davita để nhận bảng thông số chi tiết, tình trạng tồn kho và chính sách giá ưu đãi dự án tốt nhất.
1. Order code: P77
2. Description: Single acting, Two Speed pump, ULTIMA Steel Hydraulic Hand Pump, 672 cm3 Usable Oil
Enerpac P-Series, Ultima Steel Hydraulic Hand Pumps are durable, portable, and easy to use. The range features 2 stage hydraulic pumps for superior speed, and generous oil capacities - ideal for operating multiple hydraulic cylinders
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Pressure Rating 1st Stage | 34 bar |
| Pressure Rating 2nd Stage | 700 bar |
| Cylinder Compatibility | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity | 672 cm³ |
| Usable Oil Capacity | 672 cm³ |
| Maximum Flow at Rated Pressure | 2.46 cm³/stroke |
| Oil Displacement per Stroke (1st Stage) | 16.39 cm³ |
| Oil Displacement per Stroke (2nd Stage) | 2.46 cm³ |
| Maximum Handle Effort | 40 kg |
| Piston Stroke | 25.4 mm (1 inch) |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight | 7.1 kg |
4. Product Dimensions
| Dimension | Value |
|---|---|
| Dimension L | 163 mm |
| Dimension N | 140 mm |
| Dimension P | 111 mm |
| Dimension S | 8.4 mm |
5. Diagram for connecting between S/A pump and cylinder
1. Order code: P77
2. Description: Single acting, Two Speed pump, ULTIMA Steel Hydraulic Hand Pump, 672 cm3 Usable Oil
Enerpac P-Series, Ultima Steel Hydraulic Hand Pumps are durable, portable, and easy to use. The range features 2 stage hydraulic pumps for superior speed, and generous oil capacities - ideal for operating multiple hydraulic cylinders
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Pressure Rating 1st Stage | 34 bar |
| Pressure Rating 2nd Stage | 700 bar |
| Cylinder Compatibility | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity | 672 cm³ |
| Usable Oil Capacity | 672 cm³ |
| Maximum Flow at Rated Pressure | 2.46 cm³/stroke |
| Oil Displacement per Stroke (1st Stage) | 16.39 cm³ |
| Oil Displacement per Stroke (2nd Stage) | 2.46 cm³ |
| Maximum Handle Effort | 40 kg |
| Piston Stroke | 25.4 mm (1 inch) |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight | 7.1 kg |
4. Product Dimensions
| Dimension | Value |
|---|---|
| Dimension L | 163 mm |
| Dimension N | 140 mm |
| Dimension P | 111 mm |
| Dimension S | 8.4 mm |
5. Diagram for connecting between S/A pump and cylinder
